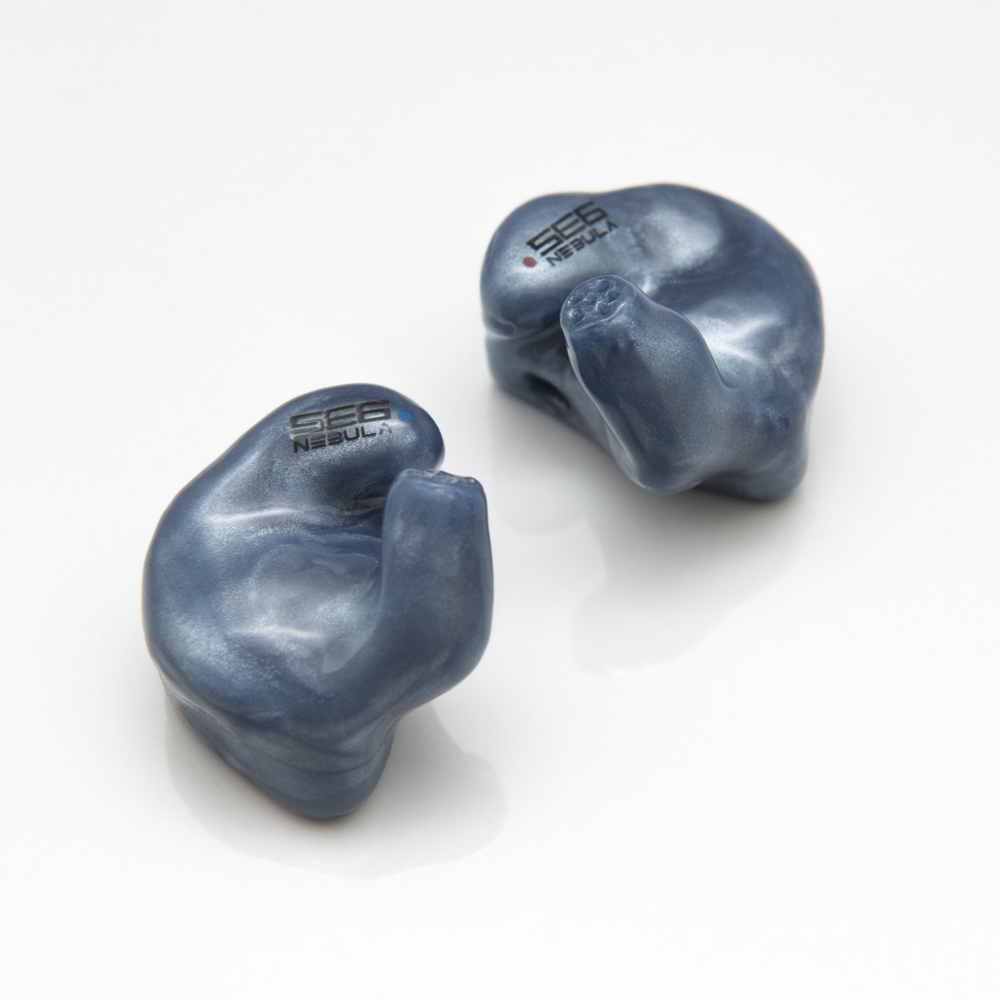

SE6 Nebula IEM’s

Custom Iem's

(0% VAT; export outside EU)

(incl. 23% VAT; export within EU)

* Price of the product does not include shipping costs.

* We are not responsible for import taxes and duties that might be imposed by customs office in your country.

FEATURES:

Spiral Ear signature 6-way crossover design with 6 independent drivers and 6 separate acoustic sound outputs:

1 independent, ultra-high efficiency, advanced BA isobaric subwoofer featuring custom, dual, ported and synchronised diaphragms, operating in unison at an equal sound field, yet coupled with an unconventional variable pressure rates solution; enclosed in a custom tuned acoustic chamber designed for use in a closed silicone environment (world’s first). Extremely powerful, delivering up to 143 dB SPL and stunningly low THD (0,2% @ 100dB SPL).
1 independent BA woofer.
1 independent BA low-mid driver.
1 independent BA mid driver.
1 independent BA hi-mid/tweeter.
1 independent BA custom tuned ultra-high performance super tweeter delivering up to 145 dB SPL and extremely low THD (0,2% @ 100dB SPL).

SPECIFICATION:

Frequency Response: 5Hz – 50kHz.
Impedance: 23Ω @ 1kHz.
Sensitivity: 109dB @ 1kHz, 1mW.
6-way Passive Crossover.
6 independent precision BA drivers.
6 separate acoustic sound outputs.
Advanced isobaric coupling technology.
Noise Isolation: ~ -37dB (our decades-long expertise providing a standard musician’s fit delivers the highest available average isolation levels in any custom IEM’s; a feature which has become SE signature).
Silicone damping solutions further improved for absorbing unbeatable 99,8% of unwanted physical driver resonance and vibrations and, thus, the resulting lowest available distortion level.
Blackest background, virtually eliminating any noise floor.
Available in industry standard 2-pin socket: 0.78mm pin diameter/3.43mm pin length; 3,5mm TRS.
Estimated crafting time: 2-3 weeks.
